Home • Thermal Densifiers • PWH-150 Light Duty Thermal Styrofoam Densifiers

PWH-150 Light Duty Thermal Styrofoam Densifier

The PWH-150 delivers efficient foam densification in a compact, light duty machine. Processing up to 150 pounds per hour, this American-made thermal Styrofoam densifier helps operations with smaller foam waste volumes reclaim space, cut haul-away costs, and recover value from material they currently discard.

Explore the PWH-150

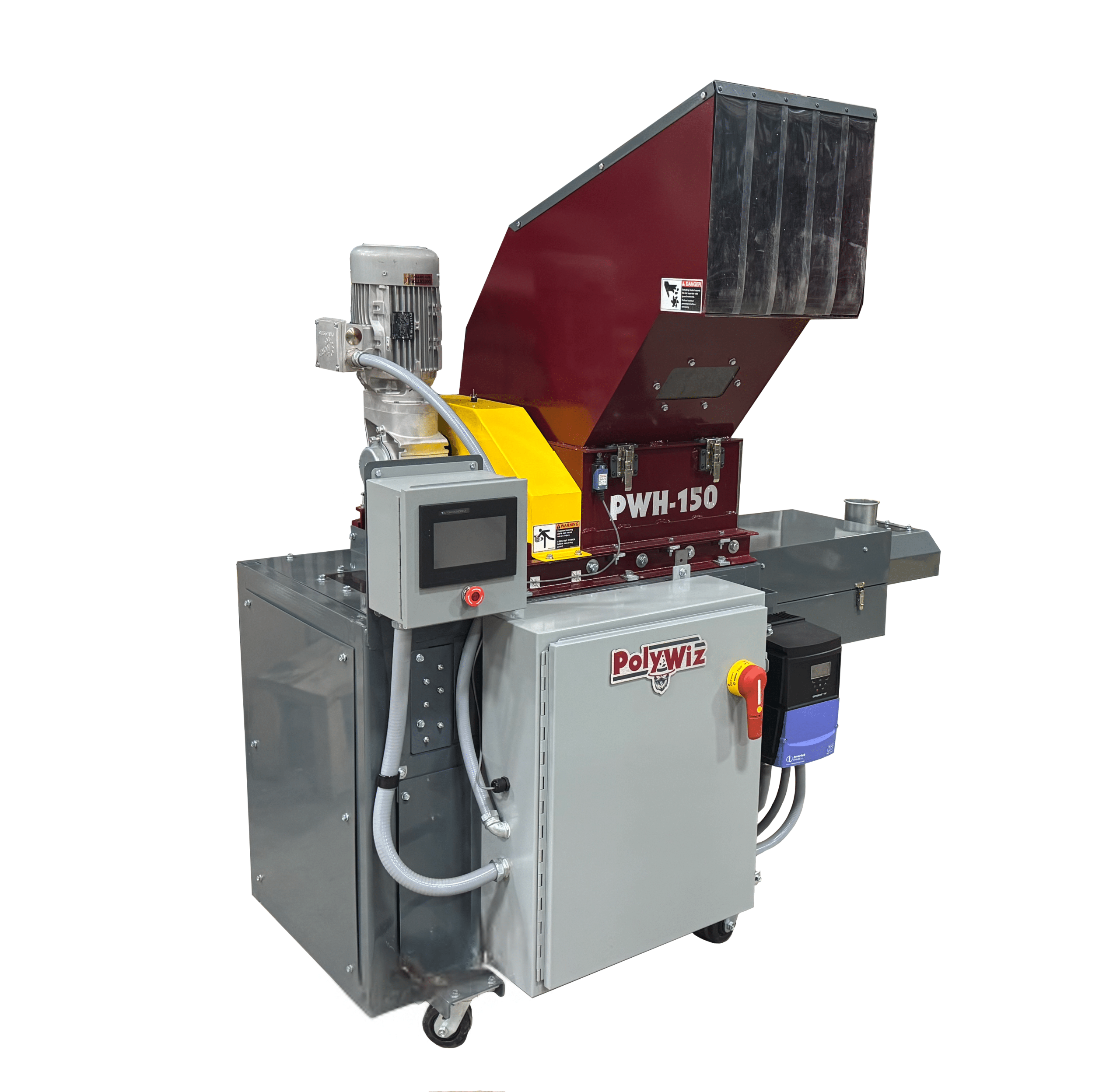

Industrial plastic granulator machine labeled PolyWiz with a red and silver body, control panel, and chute for feeding materials. Designed for styrofoam recycling applications, the model number PWH-150 is visible on the front.

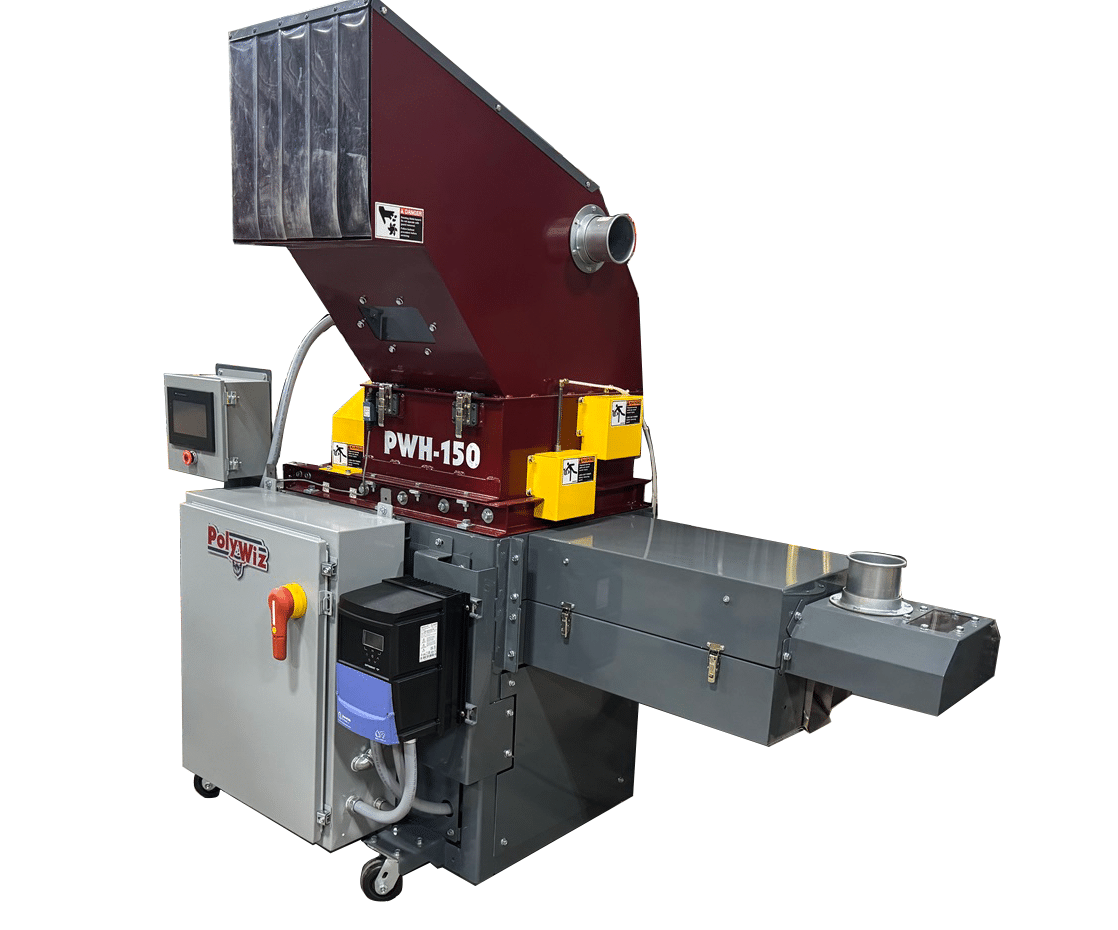

Large industrial machine with a maroon hopper labeled PWH-150, control panel, and gray conveyor belt attachment, used for processing or shredding materials such as styrofoam; this PolyWiz densifier is designed for efficient material reduction and recycling operations.

Compact Size, Efficient Foam Processing

The PWH-150 processes clean, dry expanded polystyrene (EPS), expanded polyethylene (EPE), and expanded polypropylene (EPP). Its shredder and heated extrusion process reduce foam volume by up to 90:1, producing dense purge that can be formed into manageable blocks and sold as a commodity.

With a smaller footprint than the PWH-300, it brings practical foam recovery into facilities where processing needs and available space call for a more compact machine.

Request a Quote Download the PWH-150 Flyer View Machine Drawing

Get to Know PolyWiz Thermal Densifiers

Watch our overview for a closer look at PolyWiz equipment and the benefits of processing foam onsite. See the machinery behind a more practical approach to managing bulky foam waste.

Specifications

Shredder Motor HP 3 hp
Auger Motor HP 5 hp
Voltage Three Phase 208V/230V/460V
Weight 1,900 lbs
Throughput Up to 150 lbs/hr
Infeed Type Manual Feed
Infeed Dimensions 17.5″ x 14.5″
Machine Dimensions 39″ x 79″ x 77″
Materials Processed EPS, EPE, EPP
Volume Reduction Ratio 90:1
Available Options Exhaust Vent Kit, Form Molds

Get a PWH-150 Quote

Looking for a compact machine to manage your foam waste onsite? Tell us about your material, processing volume, and available space. We’ll help you evaluate the PWH-150 and prepare a quote for your operation.

Call Now: 1-888-350-2079

Straightforward Operation

  1. Set Temperature: Begin by setting the desired operating temperature on the densifier control panel. This temperature will depend on the type and density of the foam being processed.
  2. Heating Process: Allow the system to heat up to the pre-set temperature. This process may take some time depending on the size of the densifier, as well as the initial temperature conditions.
  3. Auger Activation: As the system reaches the designated temperature, the auger will start automatically. This auger helps maintain a consistent flow of material for processing.
  4. Shredder Activation: Following the auger's initiation, the shredder component of the densifier will engage. The shredder is responsible for breaking down larger foam pieces into smaller, more manageable pieces for densification.
  5. Ready for Operation: Once both the auger and shredder are activated and operational, the PolyWiz Thermal Styrofoam Densifier is ready for use. You can begin feeding foam waste into the hopper for processing.

Maintenance Made Accessible

All grease fittings are strategically positioned on a single, user-friendly panel, making lubrication tasks effortless and convenient. This thoughtful design not only simplifies the maintenance process but also encourages operators to adhere to routine upkeep schedules. By streamlining maintenance procedures and providing easy access to critical components, we empower our clients to uphold the longevity and efficiency of their equipment, ultimately maximizing productivity and minimizing downtime.
  • Easy to access grease fittings all in one convenient location
  • Easy to remove guard to access drive chain and apply lubricant
  • Easy to locate hole for simple gear oil application
  • And that's it! Machine maintenance is simple with Better Densifiers!

Manual Feeding for Your Foam Workflow

The PWH-150 is hand-fed, giving operators control over material input throughout processing. Your team can monitor the foam entering the hopper and adjust feeding to suit the material being handled and the machine’s operating instructions.

Designed for clean, dry foam without contaminants

  • Expanded Polypropylene (EPP)
  • Expanded Polystyrene (EPS)
  • Expanded Polyethylene (EPE)

PWH-150 Features

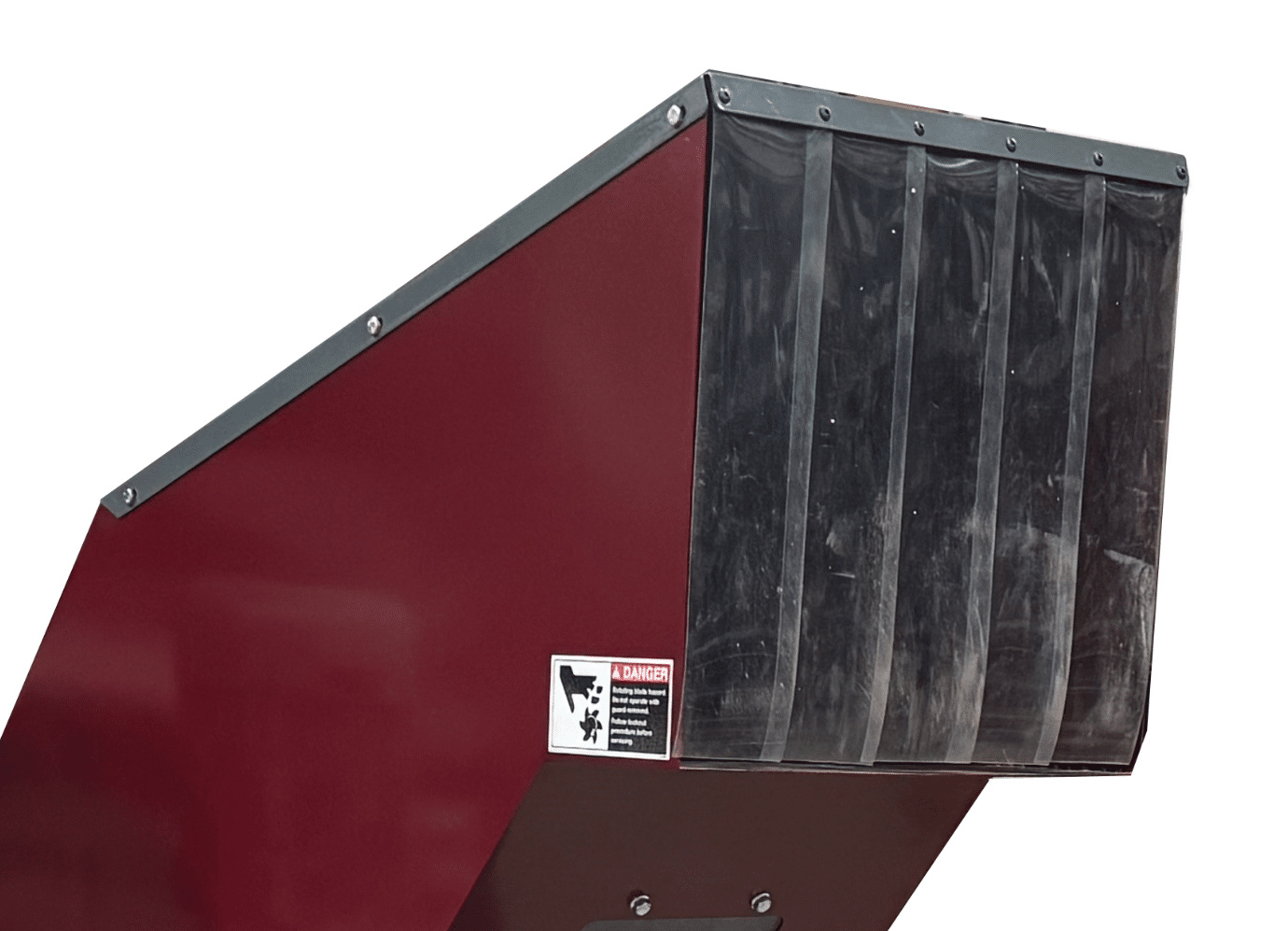

A close-up of a red industrial machine, designed for processing styrofoam, with black rubber flaps at the opening and a safety warning label on the side—an excellent example of the precision engineering found in Better Densifiers.

Powder-Coated Finish

A durable powder-coated finish helps protect the machine’s surfaces against corrosion during industrial use.

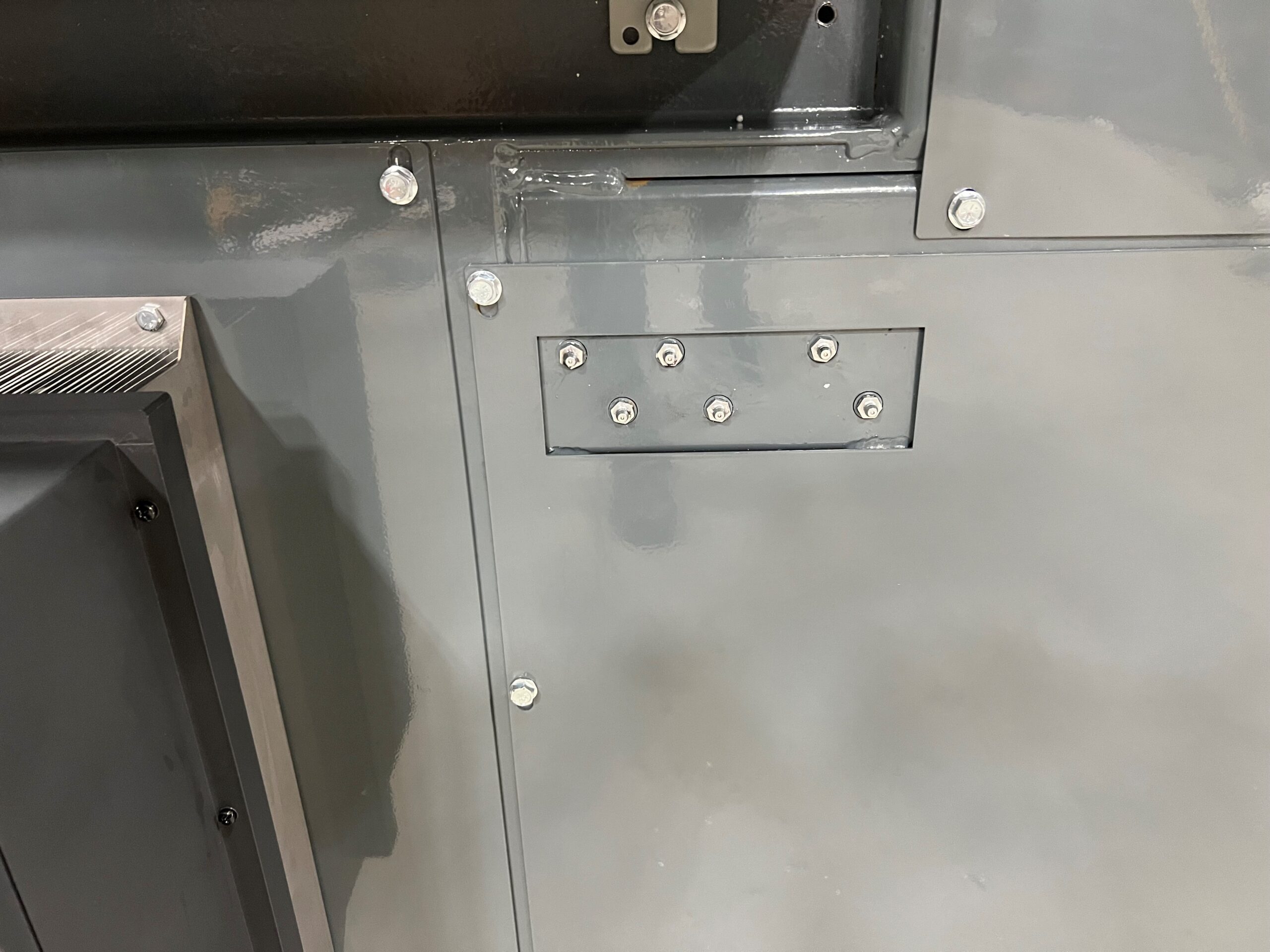

A close-up of a gray metal surface with several bolts and panels, including a rectangular panel fastened with multiple screws. The image shows part of a machine or industrial equipment, possibly related to PolyWiz densifiers designed for processing styrofoam.

Accessible Maintenance Points

Grease fittings are grouped on one panel, making routine lubrication points straightforward to locate and access.

Close-up of a red and yellow industrial machine labeled PWH-300, known as the PolyWiz, with sharp metal blades inside, used for processing or shredding materials such as styrofoam for recycling purposes. White powder or residue is visible on the blades.

Powerful Shredder

The 3-horsepower shredder breaks foam into smaller pieces, preparing the material for thermal densification and extrusion.

Thick, fibrous, white material overflows from a gray PolyWiz machine into a yellow bin, with strands and clumps of styrofoam piled up inside the container as part of the styrofoam recycling process.

Optional Purge Form Molds

Shape extruded purge into dense, stackable blocks that are easier to store, handle, and sell.

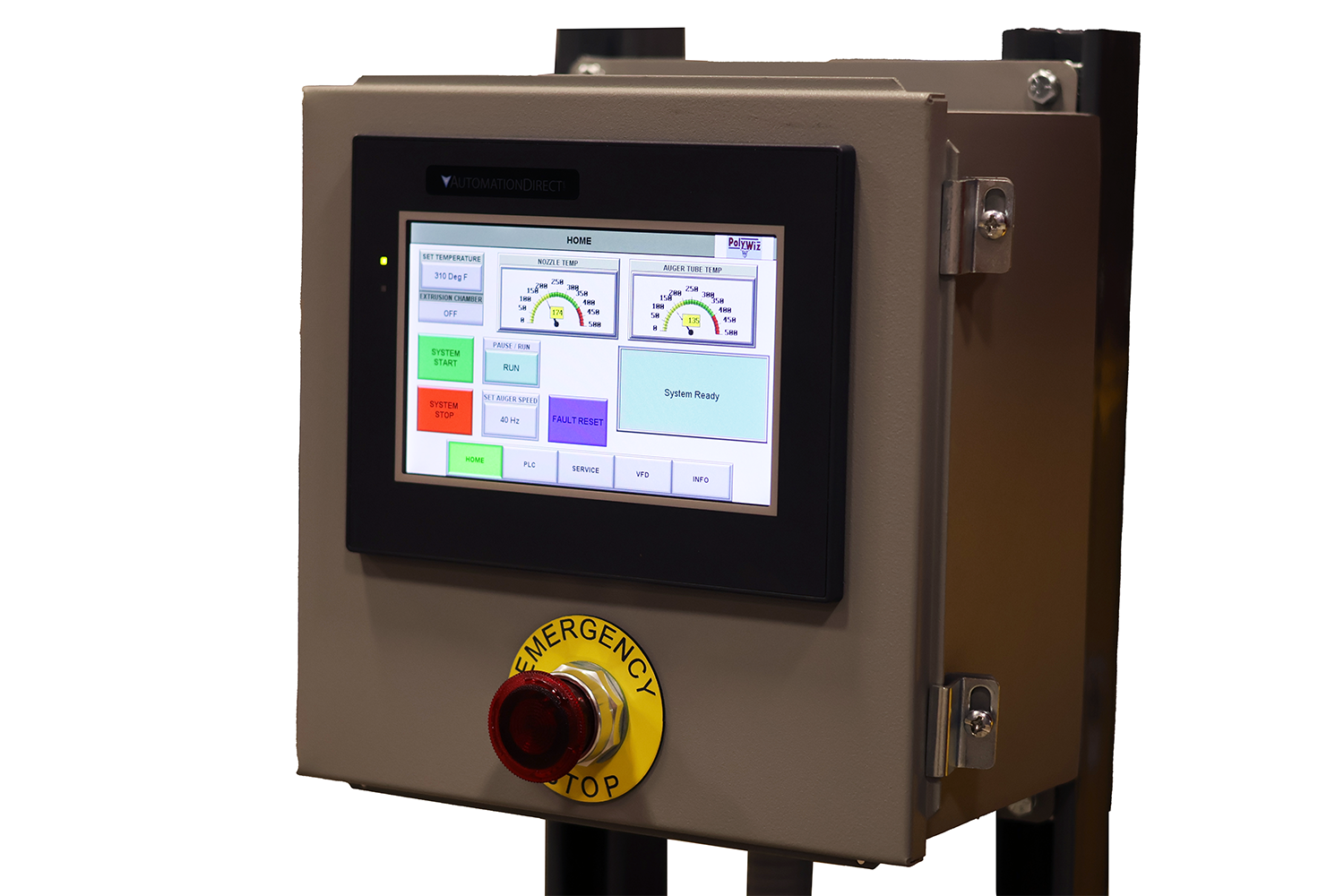

A gray industrial control panel with a touchscreen display showing system data and status indicators, and a large red emergency stop button below the screen—designed for efficient operation of densifiers used in styrofoam recycling processes.

Touchscreen Controls

The touchscreen interface gives operators a straightforward way to access machine controls and manage operation.

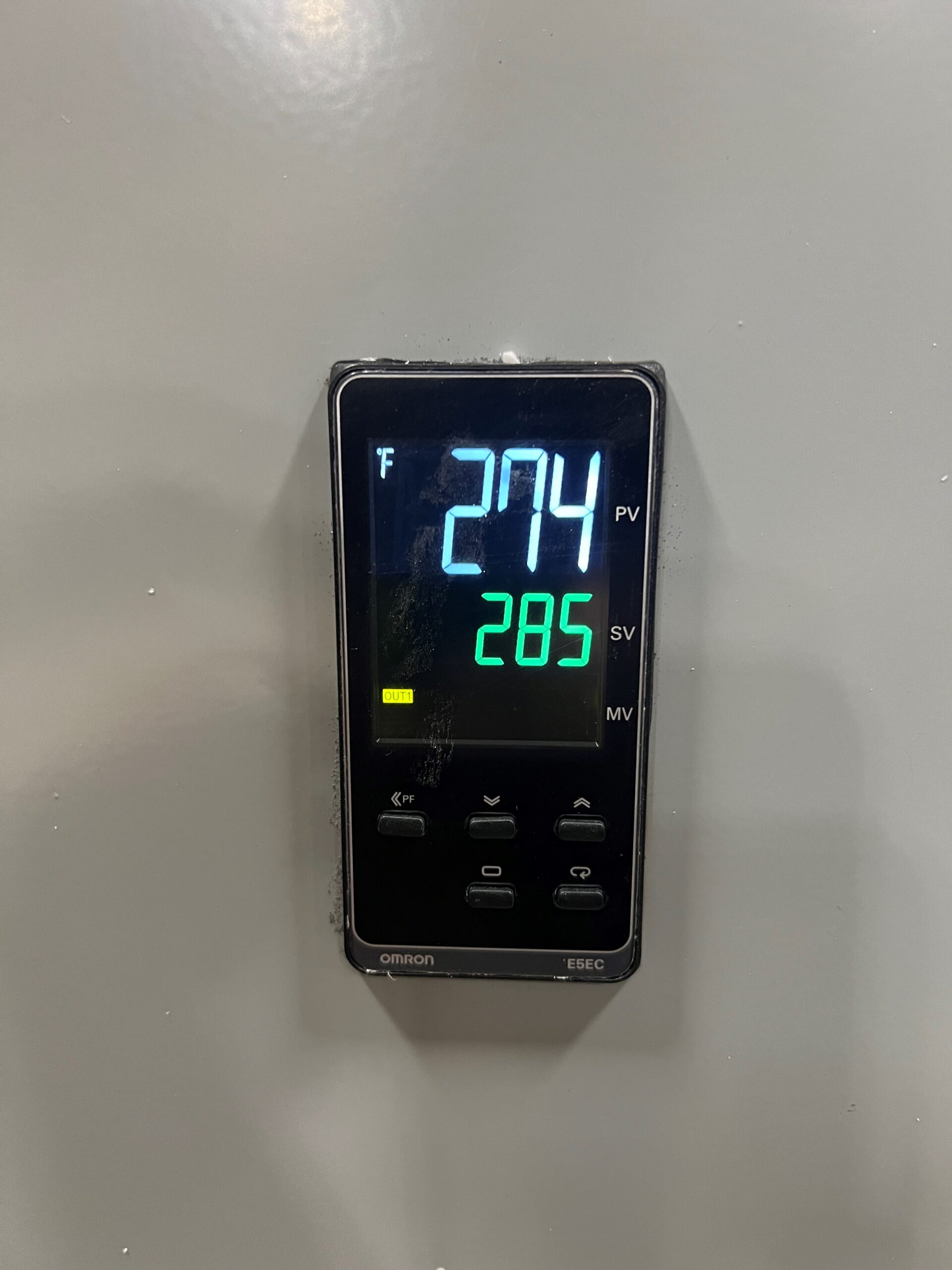

A digital temperature controller, ideal for styrofoam recycling applications, displays 274°F as the process value in blue and 285°F as the set value in green. Four buttons and a small Omron logo are visible at the bottom, making it a reliable choice for Better Densifiers or PolyWiz systems.

Adjustable Temperature Control

Adjust the processing temperature to suit the type of foam being handled and its operating requirements.

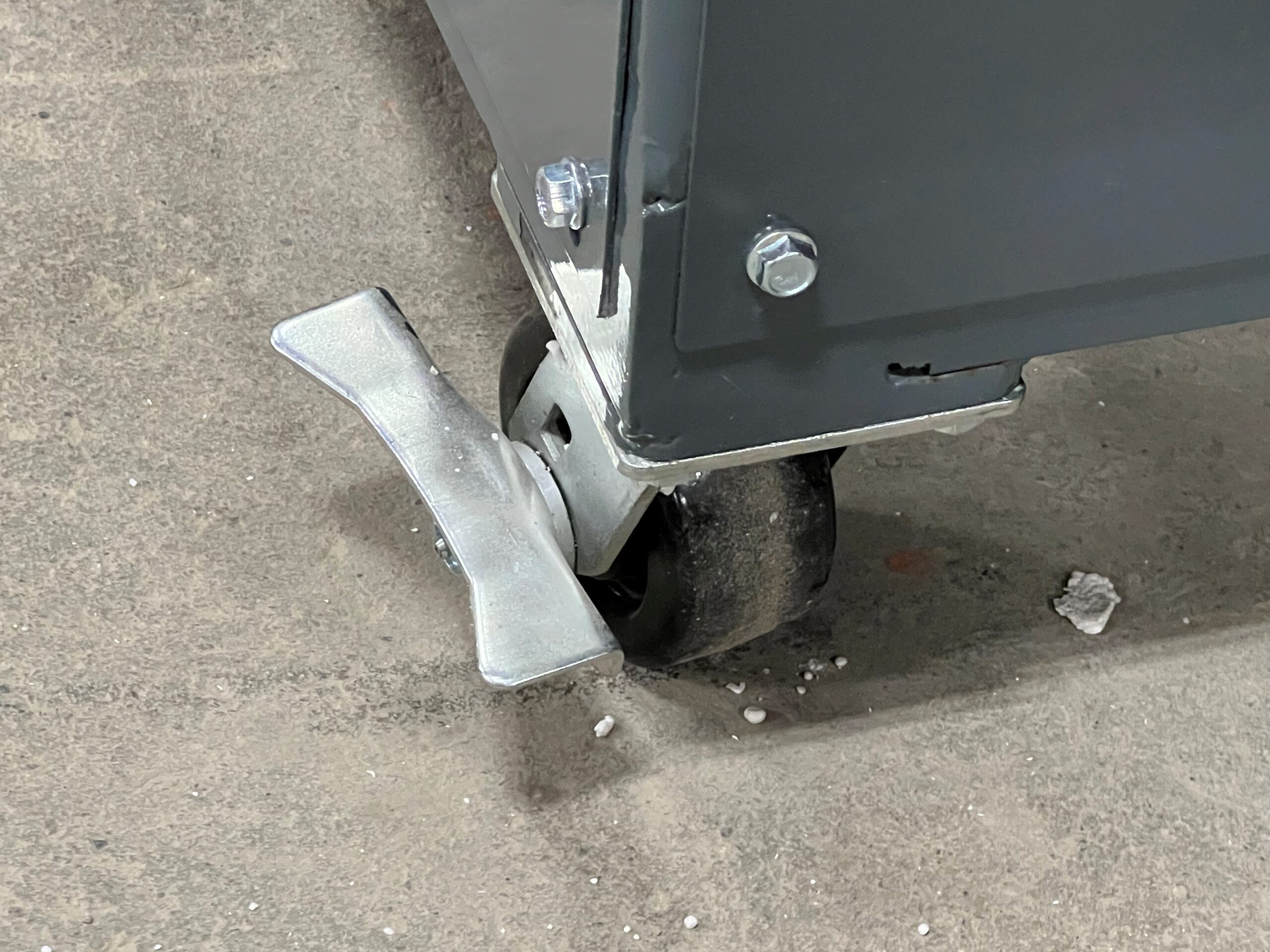

A close-up of a caster wheel with a metal brake lever attached to the bottom of a gray metal cart, on a rough concrete floor—ideal for maneuvering equipment such as Better Densifiers used in styrofoam recycling.

Heavy Duty Casters

Casters make it easier to position the machine within your facility and accommodate changes to your layout.

Industrial PolyWiz PWH-300 machine with a red top, control panel, switches, and wiring, designed for processing or handling industrial materials such as styrofoam recycling. The unit sits on a metal base with a side compartment, making it one of the most reliable densifiers in its class.

Configure Your PWH-150

Choose accessories and training around the way your facility works. Discuss purge form molds, exhaust vent kits for managing odors, and available on-site training as part of your equipment quote.

Request a Quote

Why Choose Better Densifiers?

American-Made Machinery

Our dedication to quality and reliability shines through in our decision to manufacture all our machines in the USA. By producing locally, we guarantee strict adherence to the highest manufacturing standards, employing skilled professionals and utilizing a state-of-the-art facility dedicated to excellence.

Solutions for Operations of All Sizes

We tailor our range of solutions to suit the individual needs and capabilities of diverse operations, guaranteeing that each client benefits from top-tier performance. Whether you’re a startup aiming to streamline recycling processes or a seasoned corporation striving to bolster sustainability efforts, our wealth of expertise is at your disposal to fulfill your specific requirements.

One-Year Warranty on All Parts and Labor

We take pride in the quality and durability of our products, which is why we confidently offer a comprehensive one-year warranty covering all parts and labor. Throughout the warranty period, customers can rest assured knowing that any issues or malfunctions will be promptly addressed by our expert team, at no additional cost.

Turn-Key Set-Up and Training Packages

Our turn-key setup packages include everything needed for seamless integration of our densifiers into your facility, from initial installation to operational setup. Our experienced technicians handle all aspects of the installation process, ensuring that the equipment is properly configured and optimized for your specific needs.

Equipment Financing and Leasing Programs

Better Densifiers acknowledges the significance of investing in recycling equipment for businesses. Hence, we offer flexible equipment financing and leasing programs tailored to meet diverse financial needs. Our financing solutions enable businesses to acquire our state-of-the-art densifiers without burdening cash flow or budget constraints.

Save Money and the Planet

When you choose to invest in our densifiers, you’re not just making a wise financial choice; you’re also engaging in the worldwide effort to promote sustainability. Our cutting-edge technology enhances waste management practices, substantially decreasing the amount of material sent to landfills.

Meet the PolyWiz Brand

PolyWiz is the American-made thermal densifier brand supplied by Better Densifiers. Its equipment processes clean foam into dense, sellable material, giving businesses a practical way to reduce waste volume and recover value.

More About PolyWiz
