Home • Thermal Densifiers • PWH-300 Heavy Duty Thermal Styrofoam Densifiers

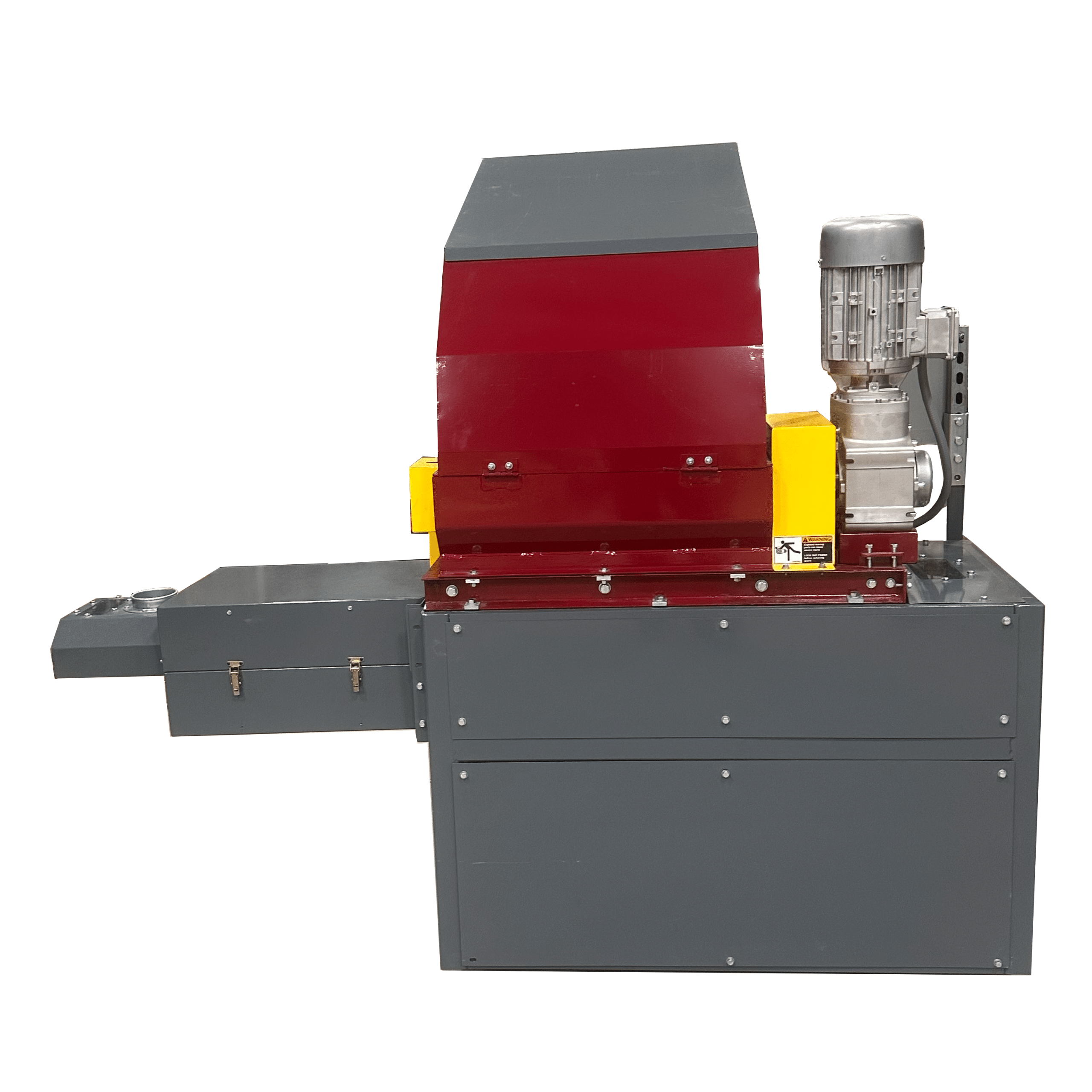

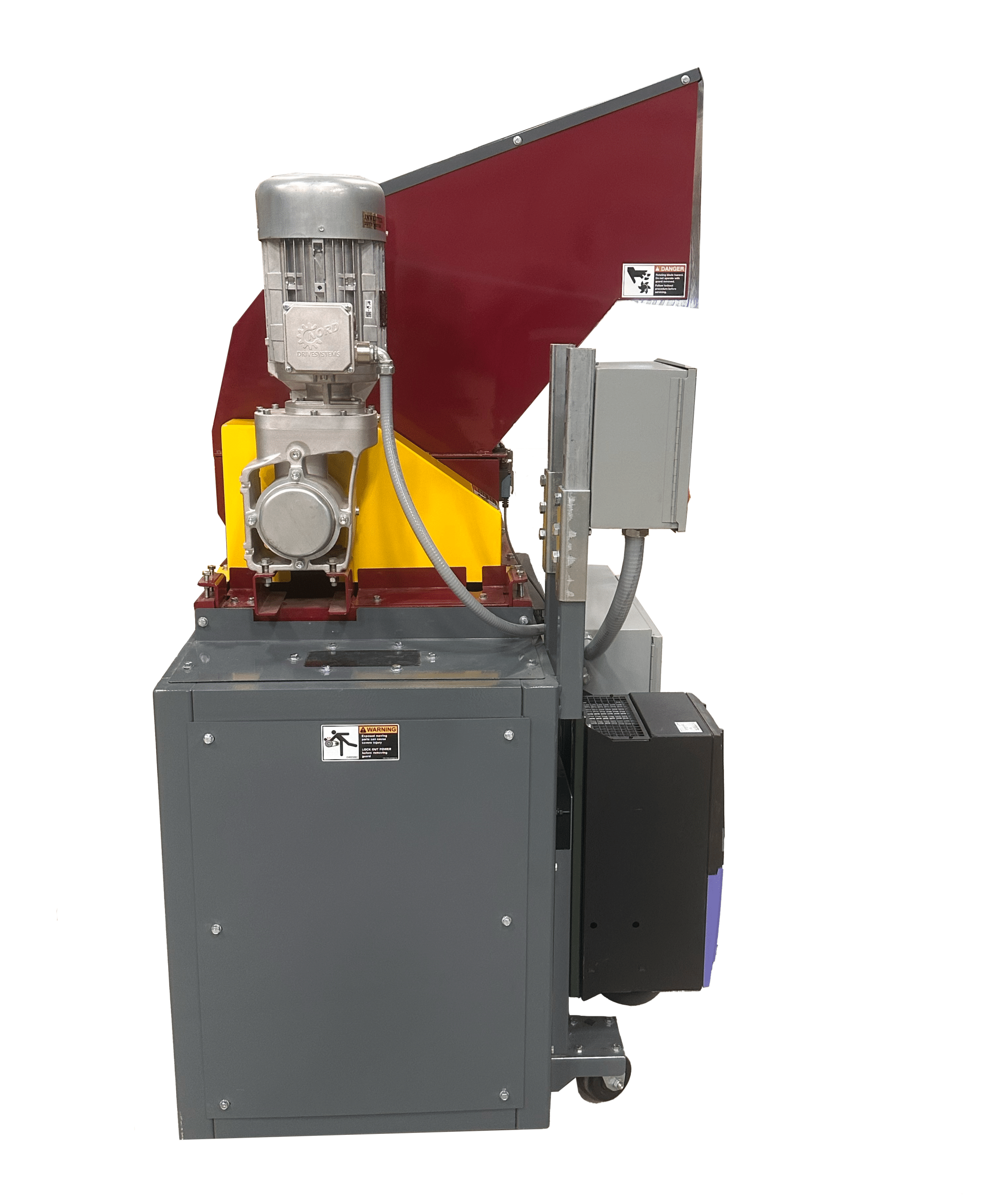

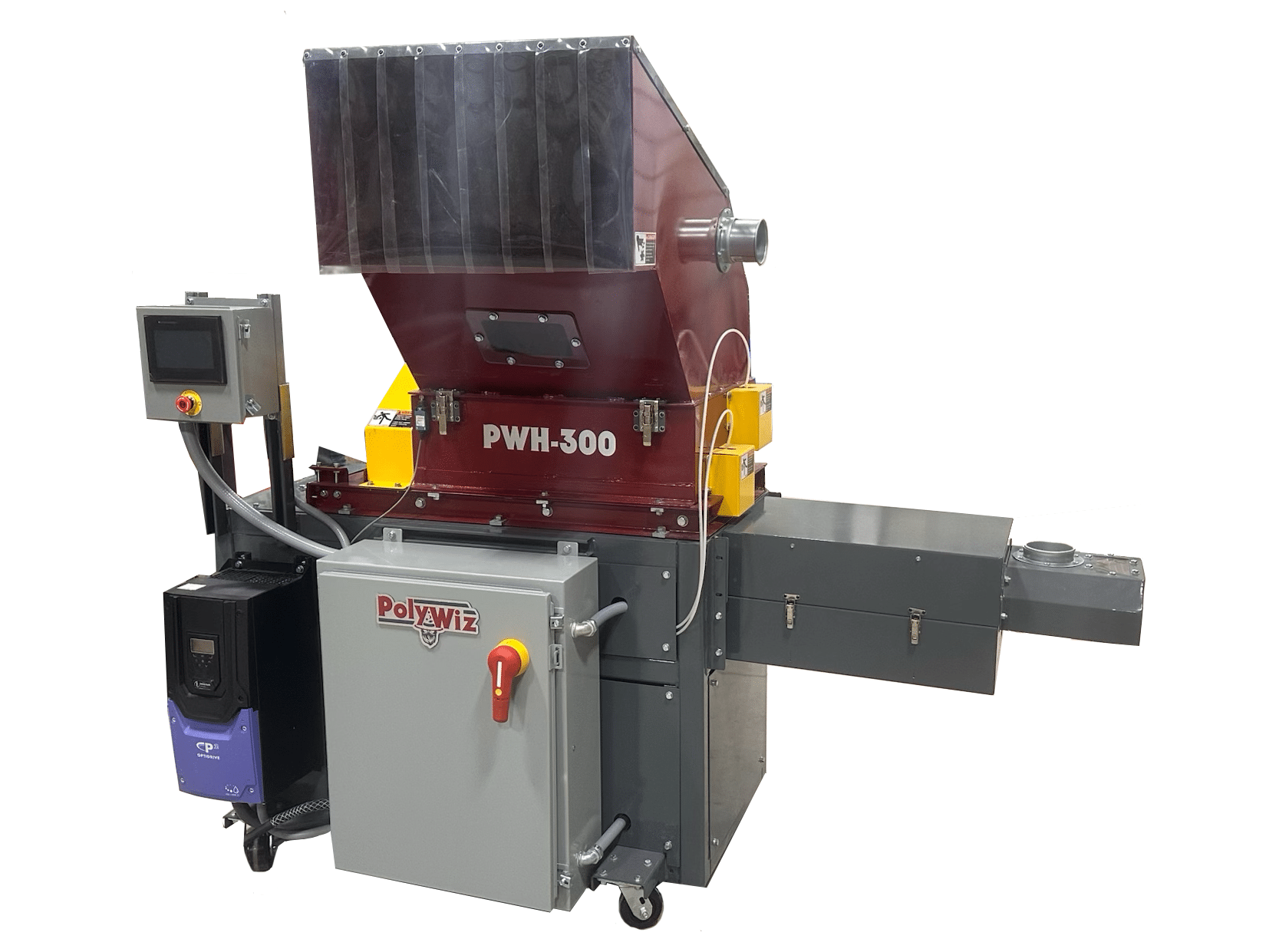

PWH-300 Heavy Duty Thermal Styrofoam Densifier

Keep large foam volumes moving with a machine built for demanding workloads. The American-made PWH-300 processes up to 300 pounds per hour, helping your business reclaim space, reduce haul-away costs, and recover value from clean foam waste.

Explore the PWH-300

More Capacity for Bulkier Foam

The PWH-300 combines a larger hopper with thermal densification for businesses handling substantial foam volumes or bulkier packaging pieces. It processes expanded polystyrene (EPS), expanded polyethylene (EPE), and expanded polypropylene (EPP).

This hand-fed machine shreds and heats clean, dry foam, reducing its volume by up to 90:1 and extruding dense purge. Optional form molds shape that material into manageable blocks for storage, handling, and sale.

Request a Quote Download the PWH-300 Flyer View Machine Dimensions

Get to Know PolyWiz Thermal Densifiers

Watch our overview for a closer look at PolyWiz equipment and the benefits of processing foam onsite. See the machinery behind a more practical approach to managing bulky foam waste.

Specifications

Shredder Motor HP	5 hp
Auger Motor HP	15 hp
Voltage	Three Phase 208V/230V/460V
Weight	2,300 lbs
Throughput	Up to 300 lbs/hr
Infeed Type	Manual Feed
Infeed Dimensions	27.5″ x 14.5″
Machine Dimensions	39″ x 89″ x 77″
Materials Processed	EPS, EPE, EPP
Volume Reduction Ratio	90:1
Available Options	Exhaust Vent Kit, Form Molds

Get a PWH-300 Quote

Handling large foam volumes or bulky packaging? Tell us about your material, processing needs, and facility. We’ll help you evaluate the PWH-300 and prepare a quote for your operation.

Call Now: 1-888-350-2079

Straightforward Operation

Set Temperature: Begin by setting the desired operating temperature on the densifier control panel. This temperature will depend on the type and density of the foam being processed.
Heating Process: Allow the system to heat up to the pre-set temperature. This process may take some time depending on the size of the densifier, as well as the initial temperature conditions.
Auger Activation: As the system reaches the designated temperature, the auger will start automatically. This auger helps maintain a consistent flow of material for processing.
Shredder Activation: Following the auger's initiation, the shredder component of the densifier will engage. The shredder is responsible for breaking down larger foam pieces into smaller, more manageable pieces for densification.
Ready for Operation: Once both the auger and shredder are activated and operational, the PolyWiz Thermal Styrofoam Densifier is ready for use. You can begin feeding foam waste into the hopper for processing.

Maintenance Made Accessible

All grease fittings are strategically positioned on a single, user-friendly panel, making lubrication tasks effortless and convenient. This thoughtful design not only simplifies the maintenance process but also encourages operators to adhere to routine upkeep schedules. By streamlining maintenance procedures and providing easy access to critical components, we empower our clients to uphold the longevity and efficiency of their equipment, ultimately maximizing productivity and minimizing downtime.

Easy to access grease fittings all in one convenient location
Easy to remove guard to access drive chain and apply lubricant

Easy to locate hole for simple gear oil application
And that's it! Machine maintenance is simple with Better Densifiers!

Manual Feeding with a Larger Hopper

The PWH-300’s larger hopper accommodates bulkier foam pieces, while manual feeding lets operators monitor and adjust material input throughout processing. This gives your team control over how foam moves into the machine.

Designed for clean, dry foam without contaminants

Expanded Polypropylene (EPP)

Expanded Polystyrene (EPS)

Expanded Polyethylene (EPE)

PWH-300 Features

A close-up of a red industrial machine, designed for processing styrofoam, with black rubber flaps at the opening and a safety warning label on the side—an excellent example of the precision engineering found in Better Densifiers.

Powder-Coated Finish

A durable powder-coated finish helps protect the machine’s surfaces against corrosion during industrial use.

A close-up of a gray metal surface with several bolts and panels, including a rectangular panel fastened with multiple screws. The image shows part of a machine or industrial equipment, possibly related to PolyWiz densifiers designed for processing styrofoam.

Accessible Maintenance Points

Grease fittings are grouped on one panel, making routine lubrication points straightforward to locate and access.

Close-up of a red and yellow industrial machine labeled PWH-300, known as the PolyWiz, with sharp metal blades inside, used for processing or shredding materials such as styrofoam for recycling purposes. White powder or residue is visible on the blades.

Powerful Shredder

The 5-horsepower shredder breaks foam into smaller pieces, preparing material for thermal densification and extrusion.

Thick, fibrous, white material overflows from a gray PolyWiz machine into a yellow bin, with strands and clumps of styrofoam piled up inside the container as part of the styrofoam recycling process.

Optional Purge Form Molds

Shape extruded purge into dense, stackable blocks that are easier to store, handle, and sell.

A gray industrial control panel with a touchscreen display showing system data and status indicators, and a large red emergency stop button below the screen—designed for efficient operation of densifiers used in styrofoam recycling processes.

Touchscreen Controls

The touchscreen interface gives operators a straightforward way to access machine controls and manage operation.

Adjustable Temperature Control

Adjust the processing temperature to suit the type of foam being handled and its operating requirements.

A close-up of a caster wheel with a metal brake lever attached to the bottom of a gray metal cart, on a rough concrete floor—ideal for maneuvering equipment such as Better Densifiers used in styrofoam recycling.

Heavy Duty Casters

Casters make it easier to position the machine within your facility and accommodate changes to your layout.

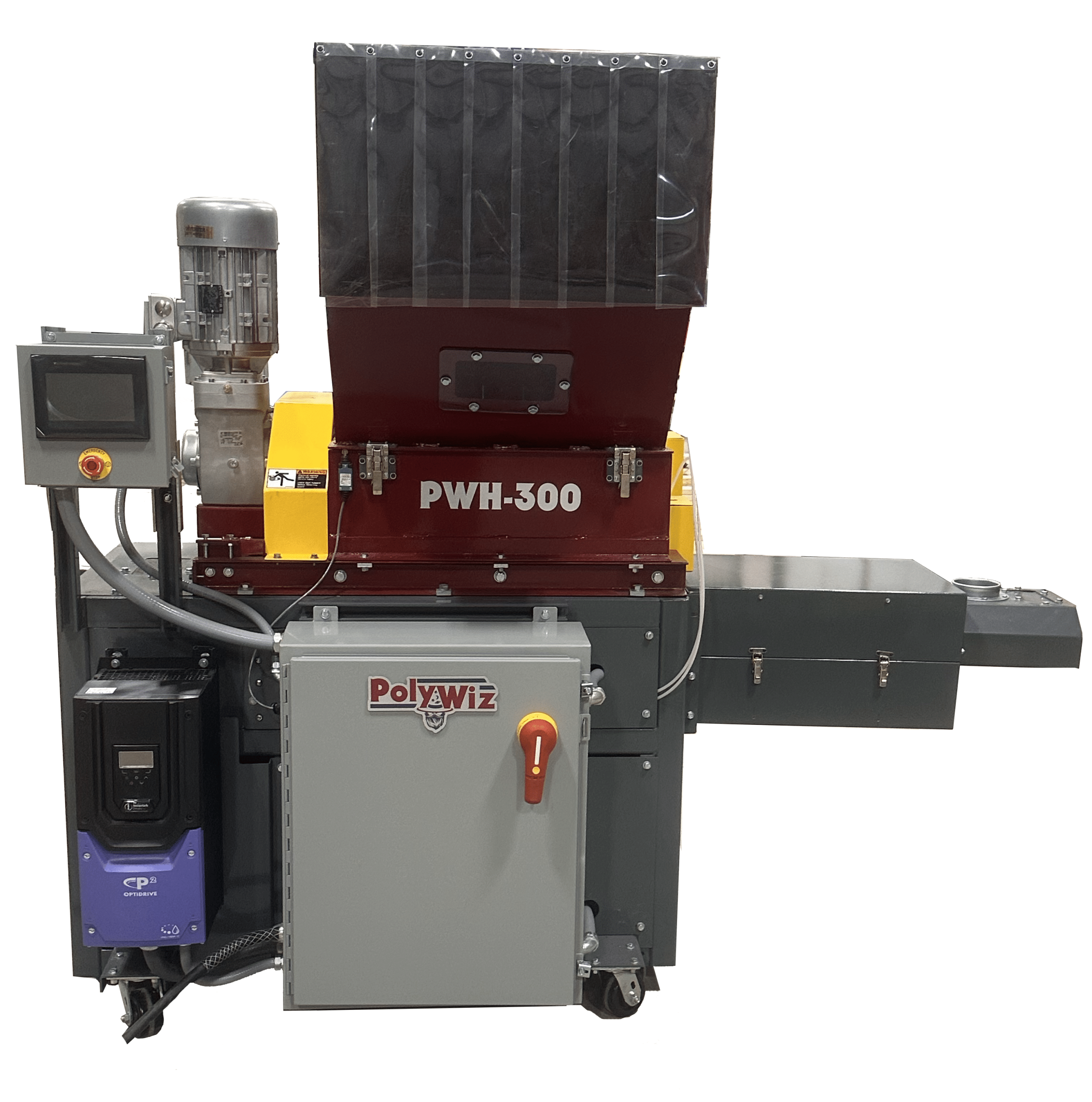

Industrial PolyWiz PWH-300 machine with a red top, control panel, switches, and wiring, designed for processing or handling industrial materials such as styrofoam recycling. The unit sits on a metal base with a side compartment, making it one of the most reliable densifiers in its class.

Plan Your PWH-300 Setup

Your facility’s power supply, accessory choices, and operator training all matter when bringing in new equipment. Discuss your requirements with our team to plan a setup that works for your operation.

Request a Quote

Why Choose Better Densifiers?

American-Made Machinery

PolyWiz thermal densifiers are proudly manufactured in the USA, combining durable construction and dependable performance with access to domestic parts sourcing. It’s American-made quality you can feel confident investing in, with support to help keep your operation moving.

Equipment Matched to Your Operation

Whether you’re a growing business or an established corporation, we help match thermal densifiers and accessories to your foam type, processing needs, and facility requirements, supporting efficient operations and advancing your sustainability goals.

One-Year Warranty

Our machines include a one-year warranty covering non-wearable parts and labor. For questions about coverage or help arranging warranty service, contact Better Densifiers to discuss the next steps.

Training and Equipment Support

On-site training is available to help your team get familiar with the equipment. Access to a nationwide network of technicians provides ongoing support as your machine becomes part of everyday operations.

Equipment Financing and Leasing

Contact us to discuss financing and leasing options for your purchase. Review the available arrangements alongside your equipment quote so you can plan around your business’s budget.

Save Money and the Planet

Reduce the cost of handling bulky foam while recovering material that can be sold and reused. Foam densification connects practical waste management improvements with your business’s sustainability goals.

Meet the PolyWiz Brand

PolyWiz is the American-made thermal densifier brand supplied by Better Densifiers. Its equipment processes clean foam into dense, sellable material, giving businesses a practical way to reduce waste volume and recover value.
